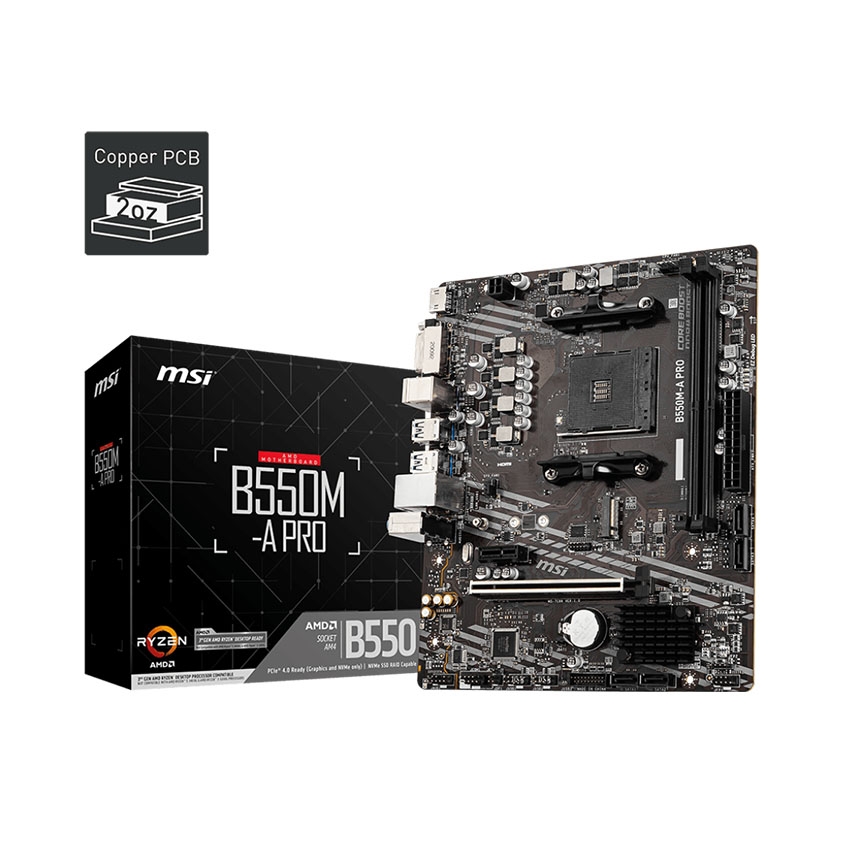

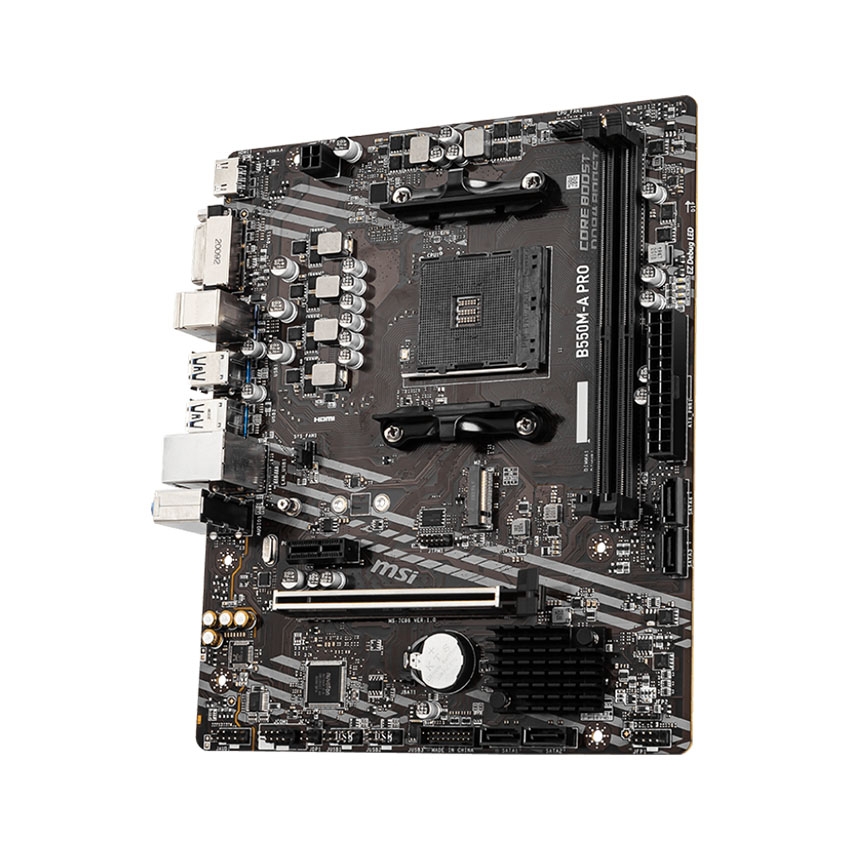

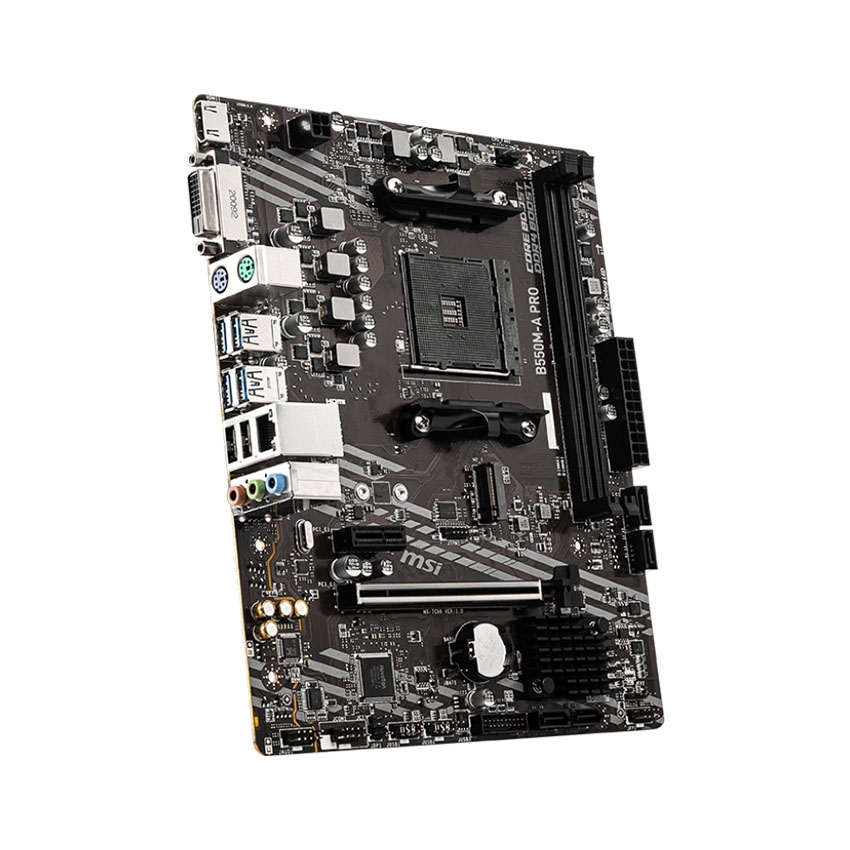

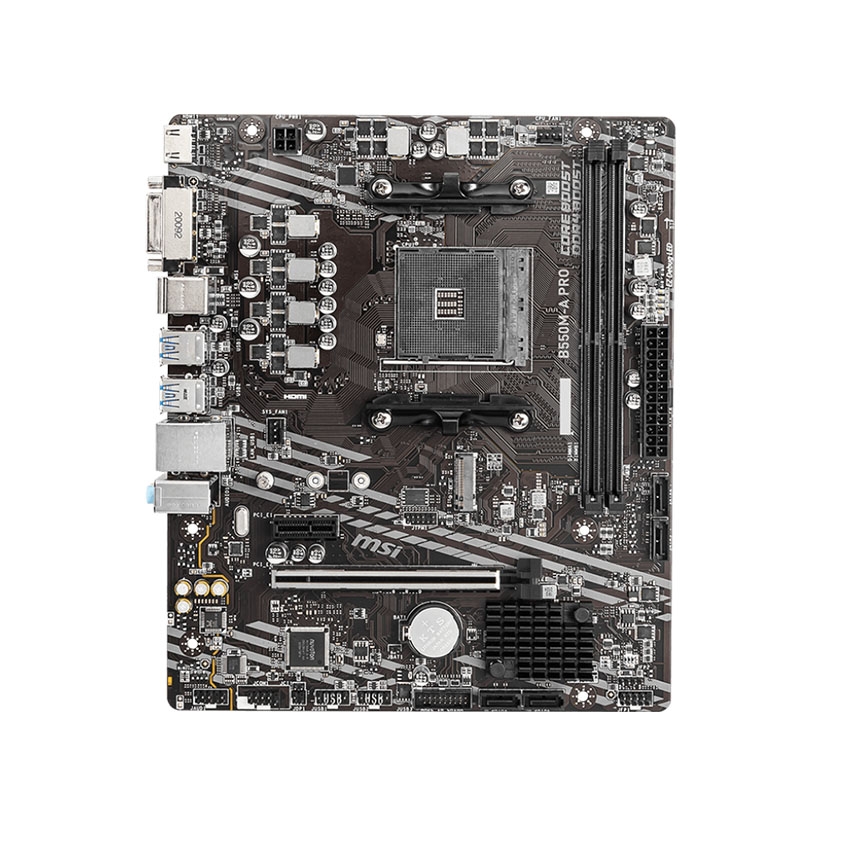

Mainboard MSI B550M-A PRO

Mã sản phẩm: MB2394

Thương hiệu: MSI

Bảo hành: 36 tháng

1.899.000₫ Giá cũ: ~~2.599.000₫~~

Chipset: AMD B550

Socket: AM4

Hỗ trợ ram: 2 khe (max 64)

Kích thước: M-ATX

Kết nối: 1 x DVI-D, 1 x HDMI

Gọi ngay 0908.181.686 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Lỗi một đổi một

Trong vòng 15 ngày

Thông tin sản phẩm
Hướng dẫn

Thông số kỹ thuật chi tiết Mainboard MSI B550M-A PRO

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET

AMD B550 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  - 1DPC 1R max speed 4600 MHz
  - 1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

EXPANSION SLOT

1x PCIe 3.0 x1 slot
1x PCIe 4.0/3.0 x16 slot

ONBOARD GRAPHICS

1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Maximum shared memory of 16 GB

STORAGE

AMD B550 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 4.0/ 3.0
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN

Realtek^® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

AUDIO

1x Realtek^® RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
