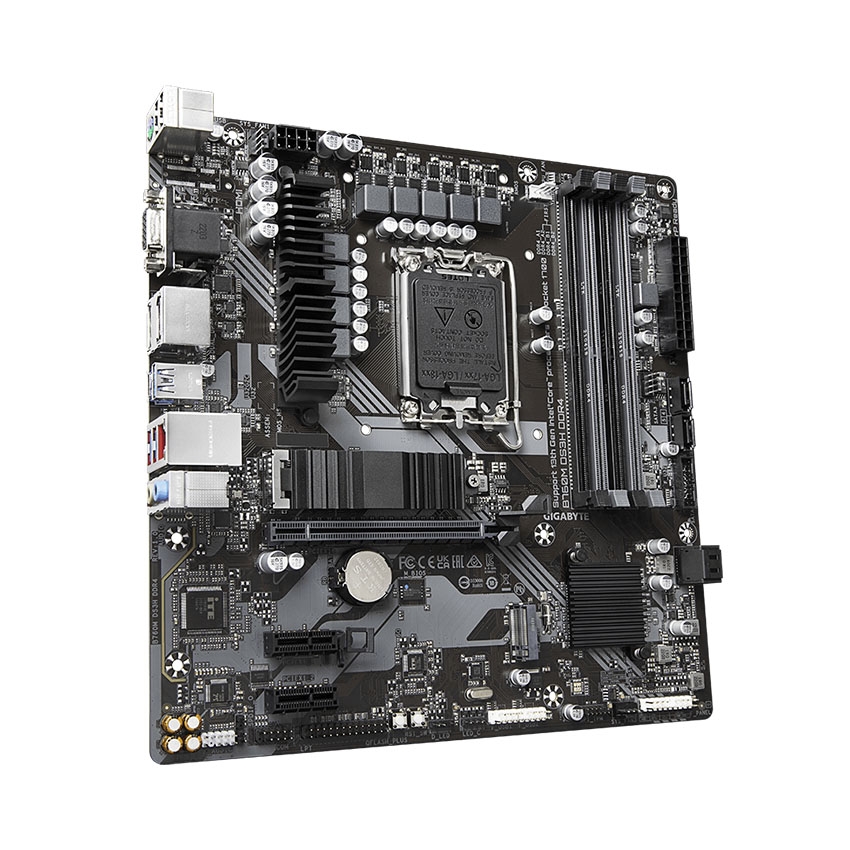

Mainboard Gigabyte B760M DS3H DDR4

Mã sản phẩm: MB6088
Thương hiệu: GIGABYTE
Bảo hành: 36 tháng
Còn hàng
2.899.000₫ Giá cũ: 3.199.000₫ Rẻ hơn 300.000₫ so với thị trường

Chipset: Intel B760

Socket: Intel LGA 1700

Kích thước:M-ATX

Số khe RAM: 4 khe( Tối đa 128GB)

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Lỗi một đổi một

Trong vòng 15 ngày

Thông số kỹ thuật chi tiết Mainboard Gigabyte B760M DS3H DDR4

Sản phẩm Bo mạch chủ
Tên Hãng GIGABYTE
Model B760M DS3H DDR4
CPU hỗ trợ Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700
Chipset B760
RAM hỗ trợ Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal) 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Cổng kết nối (Back Panel) 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
LAN / Wireless Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ Micro ATX Form Factor; 24.4cm x 22.5cm
