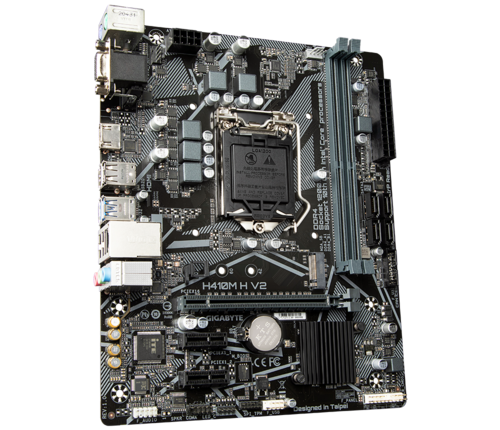

MAINBOARD GIGABYTE H410M H V2

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

H410M-H V2 ( h470 chipset)

CPU hỗ trợ

Intel

Chipset

H410

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB

1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots

Ổ cứng hỗ trợ

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

LAN / Wireless

1. Intel^® GbE LAN chip (1 Gbit/100 Mbit)

Kích cỡ

1. Micro ATX Form Factor; 22.6cm x 18.5cm
